cla3p::prm::PxMatrix< T_Int > Class Template Reference

Permutation matrix utility. More...

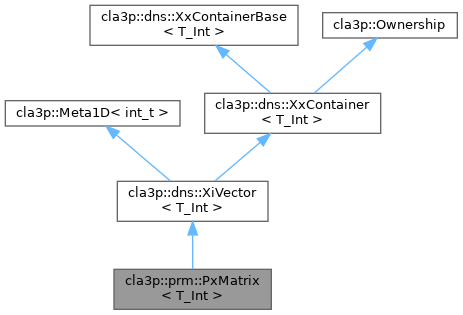

Inheritance diagram for cla3p::prm::PxMatrix< T_Int >:

Constructors
	PxMatrix ()
	Default constructor.
	PxMatrix (int_t n)
	Size constructor.
	PxMatrix (int_t n, T_Int *vals, bool bind)
	Buffer binding constructor.
	PxMatrix (const PxMatrix< T_Int > &other)=default
	Copy constructor.
	PxMatrix (PxMatrix< T_Int > &&other)=default
	Move constructor.
	~PxMatrix ()
	Destructor.

Operators
PxMatrix &	operator= (const PxMatrix< T_Int > &other)=default
	Copy assignment operator.
PxMatrix< T_Int > &	operator= (PxMatrix< T_Int > &&other)=default
	Move assignment operator.
void	operator= (T_Int val)
	Value setter.

Public Member Functions
PxMatrix< T_Int >	inverse () const
	Inverse permutation.
PxMatrix< T_Int >	permuteLeft (const PxMatrix< T_Int > &P) const
	Left permutation composition.
void	permuteLeft (const PxMatrix< T_Int > &P, PxMatrix< T_Int > &trg) const
	In-place left permutation composition.

Creators/Generators
static PxMatrix< T_Int >	identity (int_t n)
	Identity permutation generator.
static PxMatrix< T_Int >	random (int_t n)
	Random permutation generator.

Additional Inherited Members
Public Member Functions inherited from cla3p::dns::XiVector< T_Int >
T_Int &	operator() (int_t i)
	Element access operator.
void	clear ()
	Clear the vector.
void	fill (T_Int val)
	Fill all elements with a value.
XiVector< T_Int >	copy () const
	Create a deep copy of the vector.
XiVector< T_Int >	rcopy ()
	Create a reference copy (shallow copy) of the vector.
XiVector< T_Int >	move ()
	Move the vector's resources.
std::string	info (const std::string &header="") const
	Get information about the vector.
void	print (std::streamsize prec=0) const
	Print the vector to standard output.
void	toStream (std::ostream &os, std::streamsize prec=0) const
	Output the vector to a stream.
Public Member Functions inherited from cla3p::Meta1D< int_t >
int_t	size () const
	Vector size.
bool	empty () const
	Tests whether the object has zero dimension.
	operator bool () const
	Boolean conversion operator.
Public Member Functions inherited from cla3p::dns::XxContainerBase< T_Int >
T_Int *	values ()
	Access the data buffer.
Public Member Functions inherited from cla3p::Ownership
	Ownership ()
	Default constructor.
	Ownership (bool owner)
	Ownership constructor.
	~Ownership ()
	Destructor.
bool	owner () const
	Tests memory ownership.
void	unbind ()
	Relinquishes memory ownership.
Static Public Member Functions inherited from cla3p::dns::XiVector< T_Int >
static Guard< XiVector< T_Int > >	view (int_t n, const T_Int *vals)
	Create a view of existing memory.

Detailed Description

template<typename T_Int>
class cla3p::prm::PxMatrix< T_Int >

Permutation matrix utility.

Template Parameters

T_Int

Integer type for permutation indices.

Permutation matrices are stored as a 1D array of (unsigned) integers and reorder indices based on a predefined mapping. For a size n matrix, each value lies in the range [0, n-1] using 0-based indexing.

Constructor & Destructor Documentation

PxMatrix() [1/5]

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::PxMatrix ( )

explicit

Default constructor.

Constructs an empty permutation matrix.

PxMatrix() [2/5]

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::PxMatrix ( int_t n )

explicit

Size constructor.

Constructs a permutation matrix of size n with uninitialized values.

Parameters

[in]

n

The permutation matrix size.

PxMatrix() [3/5]

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::PxMatrix ( int_t n, T_Int * vals, bool bind )

explicit

Buffer binding constructor.

Creates a permutation matrix of size n bound to external storage or copies from provided values.

Parameters

[in]	n	The permutation matrix size.
[in]	vals	Pointer to n entries holding the permutation values.
[in]	bind	If true, takes ownership of vals and manages its lifetime.

PxMatrix() [4/5]

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::PxMatrix ( const PxMatrix< T_Int > & other )

default

Copy constructor.

Constructs a permutation matrix with a copy of other; other remains unchanged.

PxMatrix() [5/5]

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::PxMatrix ( PxMatrix< T_Int > && other )

default

Move constructor.

Transfers the contents of other; other is left empty.

~PxMatrix()

template<typename T_Int>

cla3p::prm::PxMatrix< T_Int >::~PxMatrix

(

)

Destructor.

Destroys the permutation matrix.

Member Function Documentation

operator=() [1/3]

template<typename T_Int>

PxMatrix & cla3p::prm::PxMatrix< T_Int >::operator= ( const PxMatrix< T_Int > & other )

default

Copy assignment operator.

If (*this) is empty, copies the contents of other. If (*this) is not empty, performs a deep copy of other into (*this). The two matrices must have equal size.

operator=() [2/3]

template<typename T_Int>

PxMatrix< T_Int > & cla3p::prm::PxMatrix< T_Int >::operator= ( PxMatrix< T_Int > && other )

default

Move assignment operator.

Replaces the contents with those of other; other is left empty.

operator=() [3/3]

template<typename T_Int>

void cla3p::prm::PxMatrix< T_Int >::operator=

(

T_Int

val

)

Value setter.

Sets all entries of (*this) to val.

Parameters

[in]

val

The value to assign to all entries.

inverse()

template<typename T_Int>

PxMatrix< T_Int > cla3p::prm::PxMatrix< T_Int >::inverse

(

)

const

Inverse permutation.

Computes and returns the inverse (transpose) of the permutation matrix.

Returns

The inverse permutation matrix.

permuteLeft() [1/2]

template<typename T_Int>

PxMatrix< T_Int > cla3p::prm::PxMatrix< T_Int >::permuteLeft

(

const PxMatrix< T_Int > &

P

)

const

Left permutation composition.

Computes and returns the composed permutation \( P \cdot (*this) \).

Parameters

[in]

P

The left-side permutation matrix.

Returns

The composed permutation \( P \cdot (*this) \).

permuteLeft() [2/2]

template<typename T_Int>

void cla3p::prm::PxMatrix< T_Int >::permuteLeft	(	const PxMatrix< T_Int > &	P,
		PxMatrix< T_Int > &	trg ) const

In-place left permutation composition.

Stores the composed permutation \( P \cdot (*this) \) into trg.

Parameters

[in]	P	The left-side permutation matrix.
[out]	trg	Output permutation matrix receiving \( P \cdot (*this) \); must match the size of (*this).

identity()

template<typename T_Int>

PxMatrix< T_Int > cla3p::prm::PxMatrix< T_Int >::identity ( int_t n )

static

Identity permutation generator.

Creates an n-sized permutation matrix with \( P(i) = i \).

Parameters

[in]

n

The permutation matrix size.

Returns

The identity permutation matrix.

random()

template<typename T_Int>

PxMatrix< T_Int > cla3p::prm::PxMatrix< T_Int >::random ( int_t n )

static

Random permutation generator.

Creates an n-sized permutation matrix with randomly rearranged indices.

Parameters

[in]

n

The permutation matrix size.

Returns

The random permutation matrix.
