cla3p::PardisoBase< T_Matrix > Class Template Reference

The Pardiso linear solver base for sparse matrices. More...

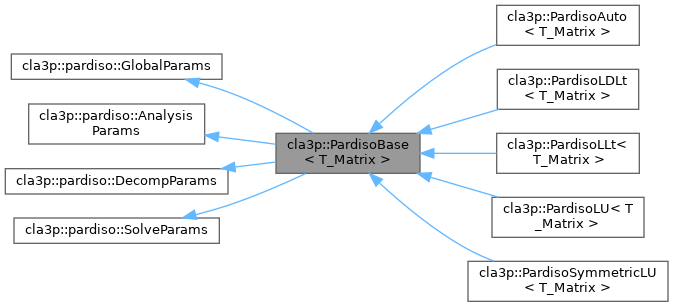

Inheritance diagram for cla3p::PardisoBase< T_Matrix >:

Public Member Functions
void	clear ()
	Clears the solver internal data.
void	clearNumeric ()
	Clears the solver numeric factor data.
void	analysis (const T_Matrix &mat)
	Performs matrix analysis & symbolic decomposition.
void	decompose (const T_Matrix &mat)
	Performs matrix decomposition.
void	solve (const dns::XxMatrix< T_Scalar > &rhs, dns::XxMatrix< T_Scalar > &sol)
	Performs matrix solution.
void	solve (const dns::XxVector< T_Scalar > &rhs, dns::XxVector< T_Scalar > &sol)
	Performs vector solution.
void	setVerbose (bool flg)
	Message level information.
const prm::PiMatrix &	fillReducingOrdering () const
	Gets the calculated fill-reducing permutation matrix.
int_t	iterativeRefinementSteps () const
	Iterative refinement steps performed.
int_t	perturbedPivots () const
	Number of perturbed pivots.
int_t	peakAnalysisMemory () const
	Peak memory on symbolic factorization.
int_t	permanentAnalysisMemory () const
	Permanent memory on symbolic factorization.
int_t	factorMemory () const
	Size of factors/Peak memory on numerical factorization and solution.
Public Member Functions inherited from cla3p::pardiso::GlobalParams
void	setMatrixChecker (bool flg)
	Forces Pardiso to check input matrix.
Public Member Functions inherited from cla3p::pardiso::AnalysisParams
void	setFillReducer (pardiso::reorder_t reorderMethod)
	Sets the fill reducing ordering method.
void	setFillReducer (const prm::PiMatrix &permMatrix)
	Sets a custom fill-reducing permutation.
Public Member Functions inherited from cla3p::pardiso::SolveParams
void	setMaxIterativeRefinements (int_t numIters)
	Sets maximum number of iterative refinement steps.

Detailed Description

template<typename T_Matrix>
class cla3p::PardisoBase< T_Matrix >

The Pardiso linear solver base for sparse matrices.

Member Function Documentation

clear()

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::clear

(

)

Clears the solver internal data.

Clears the solver internal data and resets all settings.

clearNumeric()

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::clearNumeric

(

)

Clears the solver numeric factor data.

Clears memory allocated for the factor storage.

analysis()

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::analysis

(

const T_Matrix &

mat

)

Performs matrix analysis & symbolic decomposition.

Parameters

[in]

mat

The matrix to be analyzed.

Performs matrix analysis & symbolic decomposition. Uses settings from the pardiso::GlobalParams & pardiso::AnalysisParams classes.

Examples

ex07a_solving_sparse_linear_systems_lu.cpp, ex07b_solving_sparse_linear_systems_llt.cpp, ex07c_solving_sparse_linear_systems_ldlt.cpp, and ex07e_solving_sparse_linear_systems_auto.cpp.

decompose()

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::decompose

(

const T_Matrix &

mat

)

Performs matrix decomposition.

Parameters

[in]

mat

The matrix to be decomposed.

Performs matrix numerical decomposition. Uses settings from the pardiso::GlobalParams & pardiso::DecompParams classes.

Examples

ex07a_solving_sparse_linear_systems_lu.cpp, ex07b_solving_sparse_linear_systems_llt.cpp, ex07c_solving_sparse_linear_systems_ldlt.cpp, and ex07e_solving_sparse_linear_systems_auto.cpp.

solve() [1/2]

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::solve	(	const dns::XxMatrix< T_Scalar > &	rhs,
		dns::XxMatrix< T_Scalar > &	sol )

Performs matrix solution.

Parameters

[in]	rhs	The right hand side matrix.
[out]	sol	The matrix containing with the solution.

Calculates the solution sol using the decomposed matrix. Uses settings from the pardiso::GlobalParams & pardiso::SolveParams classes.

Examples

ex07a_solving_sparse_linear_systems_lu.cpp, ex07b_solving_sparse_linear_systems_llt.cpp, ex07c_solving_sparse_linear_systems_ldlt.cpp, and ex07e_solving_sparse_linear_systems_auto.cpp.

solve() [2/2]

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::solve	(	const dns::XxVector< T_Scalar > &	rhs,
		dns::XxVector< T_Scalar > &	sol )

Performs vector solution.

Parameters

[in]	rhs	The right hand side vector.
[out]	sol	The vector containing with the solution.

Calculates the solution sol using the decomposed matrix. Uses settings from the pardiso::GlobalParams & pardiso::SolveParams classes.

setVerbose()

template<typename T_Matrix>

void cla3p::PardisoBase< T_Matrix >::setVerbose

(

bool

flg

)

Message level information.

Parameters

[in]

flg

Enables/disables Pardiso verbosity.

• flg = false, Pardiso generates no output
• flg = true, Pardiso prints statistical information to the screen.

fillReducingOrdering()

template<typename T_Matrix>

const prm::PiMatrix & cla3p::PardisoBase< T_Matrix >::fillReducingOrdering

(

)

const

Gets the calculated fill-reducing permutation matrix.

Returns

The currently used fill-reducing permutation matrix.

You can access the fill-reducing ordering calculated in the analysis phase. Useful for testing reordering algorithms, adapting the code to special applications problems, or for using the permutation vector more than once for matrices with identical sparsity structures.

Set before analysis.

iterativeRefinementSteps()

template<typename T_Matrix>

int_t cla3p::PardisoBase< T_Matrix >::iterativeRefinementSteps

(

)

const

Iterative refinement steps performed.

Returns

The number of iterative refinement steps performed.

Reports the number of iterative refinement steps that were actually performed during the solve step.

Available after solve.

perturbedPivots()

template<typename T_Matrix>

int_t cla3p::PardisoBase< T_Matrix >::perturbedPivots

(

)

const

Number of perturbed pivots.

Returns

The number of perturbed pivots applied.

Contains the number of perturbed pivots (not for positive definite matrices).

Available after decomposition.

peakAnalysisMemory()

template<typename T_Matrix>

int_t cla3p::PardisoBase< T_Matrix >::peakAnalysisMemory

(

)

const

Peak memory on symbolic factorization.

Returns

The peak analysis memory (Kb).

The total peak memory in kilobytes that the solver needs during the analysis and symbolic factorization phase.

Available after analysis.

permanentAnalysisMemory()

template<typename T_Matrix>

int_t cla3p::PardisoBase< T_Matrix >::permanentAnalysisMemory

(

)

const

Permanent memory on symbolic factorization.

Returns

The permanent analysis memory (Kb).

Permanent memory from the analysis and symbolic factorization phase in kilobytes that the solver needs in the factorization and solve phases.

Available after analysis.

factorMemory()

template<typename T_Matrix>

int_t cla3p::PardisoBase< T_Matrix >::factorMemory

(

)

const

Size of factors/Peak memory on numerical factorization and solution.

Returns

The permanent analysis memory (Kb).

This parameter provides the size in kilobytes of the total memory consumed by (in-core) Pardiso for internal floating point arrays.

Available after analysis.
