The dense matrix class. More...

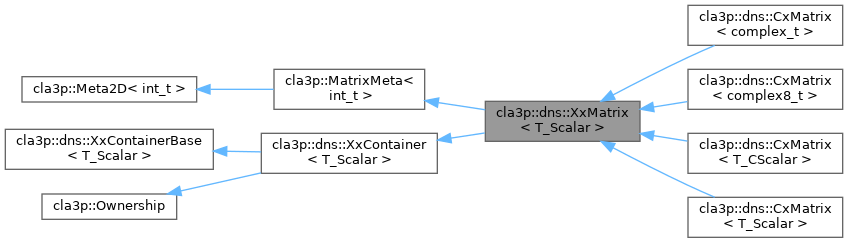

Inheritance diagram for cla3p::dns::XxMatrix< T_Scalar >:

[legend]

Constructors
	XxMatrix ()
	Default constructor.
	XxMatrix (int_t nr, int_t nc, const Property &pr=Property::General())
	Dimension constructor.
	XxMatrix (int_t nr, int_t nc, T_Scalar *vals, int_t ldv, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	XxMatrix (const XxMatrix< T_Scalar > &other)
	Copy constructor.
	XxMatrix (XxMatrix< T_Scalar > &&other)
	Move constructor.
	~XxMatrix ()
	Destructor.

Operators
XxMatrix< T_Scalar > &	operator= (const XxMatrix< T_Scalar > &other)
	Copy assignment operator.
XxMatrix< T_Scalar > &	operator= (XxMatrix< T_Scalar > &&other)
	Move assignment operator.
T_Scalar &	operator() (int_t i, int_t j)
	Element access operator.
const T_Scalar &	operator() (int_t i, int_t j) const
	Element access operator.
alias::VirtualScal_dns< T_Scalar >	operator- () const
	Unary negation operator.
void	operator= (T_Scalar val)
	Fill operator.

Arguments
int_t	ld () const
	Get the leading dimension.

Public Member Functions
void	clear ()
	Clear the matrix.
void	fill (T_Scalar val)
	Fill all elements with a value.
XxMatrix< T_Scalar >	copy () const
	Create a deep copy of the matrix.
XxMatrix< T_Scalar >	rcopy ()
	Create a reference copy (shallow copy) of the matrix.
Guard< XxMatrix< T_Scalar > >	rcopy () const
	Create a guarded reference copy (shallow copy) of the matrix.
XxMatrix< T_Scalar >	move ()
	Move the matrix's resources.
alias::VirtualStrided_vec< T_Scalar >	diag ()
	Access the diagonal of the matrix.
alias::GuardedStrided_vec< T_Scalar >	diag () const
	Access the diagonal of the matrix (const).
std::string	info (const std::string &header="") const
	Get information about the matrix.
void	print (std::streamsize prec=0) const
	Print the matrix to standard output.
void	toStream (std::ostream &os, std::streamsize prec=0) const
	Output the matrix to a stream.
void	iscale (T_Scalar val)
	Scale the matrix in-place.
alias::VirtualTrans_dns< T_Scalar >	transpose () const
	Transpose the matrix.
alias::VirtualTrans_dns< T_Scalar >	ctranspose () const
	Conjugate transpose the matrix.
alias::VirtualConj_dns< T_Scalar >	conjugate () const
	Compute the complex conjugate.
void	iconjugate ()
	Conjugate the matrix in-place.
T_RScalar	normOne () const
	Compute the 1-norm.
T_RScalar	normInf () const
	Compute the infinity norm.
T_RScalar	normMax () const
	Compute the maximum norm.
T_RScalar	normFro () const
	Compute the Frobenius norm.
XxMatrix< T_Scalar >	general () const
	Convert to general matrix.
void	igeneral ()
	Convert to general matrix in-place.
XxMatrix< T_Scalar >	permuteLeftRight (const prm::PxMatrix< int_t > &P, const prm::PxMatrix< int_t > &Q) const
	Permute rows and columns.
void	permuteLeftRight (const prm::PxMatrix< int_t > &P, const prm::PxMatrix< int_t > &Q, XxMatrix< T_Scalar > &dest) const
	Permute rows and columns into a destination.
XxMatrix< T_Scalar >	permuteLeft (const prm::PxMatrix< int_t > &P) const
	Permute rows.
void	permuteLeft (const prm::PxMatrix< int_t > &P, XxMatrix< T_Scalar > &dest) const
	Permute rows into a destination.
XxMatrix< T_Scalar >	permuteRight (const prm::PxMatrix< int_t > &Q) const
	Permute columns.
void	permuteRight (const prm::PxMatrix< int_t > &Q, XxMatrix< T_Scalar > &dest) const
	Permute columns into a destination.
XxMatrix< T_Scalar >	permuteMirror (const prm::PxMatrix< int_t > &P) const
	Permute rows and columns symmetrically.
void	permuteMirror (const prm::PxMatrix< int_t > &P, XxMatrix< T_Scalar > &dest) const
	Permute rows and columns symmetrically into a destination.
XxMatrix< T_Scalar >	block (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a block as a new matrix.
XxMatrix< T_Scalar >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj)
	Extract a reference block.
Guard< XxMatrix< T_Scalar > >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a guarded reference block.
void	setBlock (int_t ibgn, int_t jbgn, const XxMatrix< T_Scalar > &src)
	Set a block of elements.
XxVector< T_Scalar >	column (int_t j) const
	Extract a column as a new vector.
XxVector< T_Scalar >	rcolumn (int_t j)
	Extract a column as a reference.
Guard< XxVector< T_Scalar > >	rcolumn (int_t j) const
	Extract a column as a guarded reference.
XxMatrix< T_Scalar >	row (int_t i) const
	Extract a row as a new matrix.
XxMatrix< T_Scalar >	rrow (int_t i)
	Extract a row as a reference.
Guard< XxMatrix< T_Scalar > >	rrow (int_t i) const
	Extract a row as a guarded reference.
VirtualRowvec< T_Scalar >	rrowvec (int_t i) const
	Extract a row as a virtual row vector.

Creators/Generators
static XxMatrix< T_Scalar >	random (int_t nr, int_t nc, const Property &pr=Property::General(), T_RScalar lo=T_RScalar(0), T_RScalar hi=T_RScalar(1))
	Create a random matrix.
static Guard< XxMatrix< T_Scalar > >	view (int_t nr, int_t nc, const T_Scalar *vals, int_t ldv, const Property &pr=Property::General())
	Create a view of existing memory.

Additional Inherited Members
Public Member Functions inherited from cla3p::MatrixMeta< int_t >
const Property &	prop () const
	Matrix property accessor.
Public Member Functions inherited from cla3p::Meta2D< int_t >
virtual int_t	nrows () const
	Number of rows.
virtual int_t	ncols () const
	Number of columns.
bool	empty () const
	Tests whether the object has zero dimensions.
	operator bool () const
	Boolean conversion operator.
Public Member Functions inherited from cla3p::dns::XxContainerBase< T_Scalar >
T_Scalar *	values ()
	Access the data buffer.
const T_Scalar *	values () const
	Access the data buffer.
Public Member Functions inherited from cla3p::Ownership
	Ownership ()
	Default constructor.
	Ownership (bool owner)
	Ownership constructor.
	~Ownership ()
	Destructor.
bool	owner () const
	Tests memory ownership.
void	unbind ()
	Relinquishes memory ownership.

Detailed Description

template<typename T_Scalar>
class cla3p::dns::XxMatrix< T_Scalar >

The dense matrix class.

Represents a dense matrix stored in column-major format.

Template Parameters

T_Scalar The scalar type (e.g., float, double, complex).

Constructor & Destructor Documentation

◆ XxMatrix() [1/5]

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::XxMatrix ( )

Default constructor.

Creates an empty matrix with no allocated memory.

◆ XxMatrix() [2/5]

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::XxMatrix	(	int_t	nr,
		int_t	nc,
		const Property &	pr = Property::General() )

explicit

Dimension constructor.

Creates a matrix of the specified dimensions and allocates memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	pr	The matrix property (default: General).

◆ XxMatrix() [3/5]

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::XxMatrix	(	int_t	nr,
		int_t	nc,
		T_Scalar *	vals,
		int_t	ldv,
		bool	bind,
		const Property &	pr = Property::General() )

explicit

Auxiliary constructor.

Creates a matrix using existing memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	vals	Pointer to existing memory.
[in]	ldv	The leading dimension.
[in]	bind	If true, the matrix takes ownership of the memory.
[in]	pr	The matrix property (default: General).

◆ XxMatrix() [4/5]

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::XxMatrix ( const XxMatrix< T_Scalar > & other )

Copy constructor.

Creates a new matrix by copying another matrix.

Parameters

[in] other The matrix to copy.

◆ XxMatrix() [5/5]

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::XxMatrix ( XxMatrix< T_Scalar > && other )

Move constructor.

Creates a new matrix by moving resources from another matrix.

Parameters

[in] other The matrix to move from.

◆ ~XxMatrix()

template<typename T_Scalar>

cla3p::dns::XxMatrix< T_Scalar >::~XxMatrix ( )

Destructor.

Destroys the matrix and releases allocated memory.

Member Function Documentation

◆ operator=() [1/3]

template<typename T_Scalar>

XxMatrix< T_Scalar > & cla3p::dns::XxMatrix< T_Scalar >::operator= ( const XxMatrix< T_Scalar > & other )

Copy assignment operator.

Copies the contents of another matrix to this matrix.

Parameters

[in] other The matrix to copy.

Returns: Reference to this matrix.

◆ operator=() [2/3]

template<typename T_Scalar>

XxMatrix< T_Scalar > & cla3p::dns::XxMatrix< T_Scalar >::operator= ( XxMatrix< T_Scalar > && other )

Move assignment operator.

Moves resources from another matrix to this matrix.

Parameters

[in] other The matrix to move from.

Returns: Reference to this matrix.

◆ operator()() [1/2]

template<typename T_Scalar>

T_Scalar & cla3p::dns::XxMatrix< T_Scalar >::operator()	(	int_t	i,
		int_t	j )

Element access operator.

Accesses the element at the specified row and column.

Parameters

[in]	i	The row index (0-based).
[in]	j	The column index (0-based).

Returns: Reference to the element at position (i,j).

◆ operator()() [2/2]

template<typename T_Scalar>

const T_Scalar & cla3p::dns::XxMatrix< T_Scalar >::operator()	(	int_t	i,
		int_t	j ) const

Element access operator.

Accesses the element at the specified row and column.

Parameters

[in]	i	The row index (0-based).
[in]	j	The column index (0-based).

Returns: Const reference to the element at position (i,j).

◆ operator-()

template<typename T_Scalar>

alias::VirtualScal_dns< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::operator- ( ) const

Unary negation operator.

Returns a negated copy of the matrix.

Returns: A virtual expression containing the negated elements.

◆ operator=() [3/3]

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::operator= ( T_Scalar val )

Fill operator.

Fills all elements with the specified value.

Parameters

[in] val The scalar value to fill with.

◆ ld()

template<typename T_Scalar>

int_t cla3p::dns::XxMatrix< T_Scalar >::ld ( ) const

Get the leading dimension.

Returns the leading dimension of the matrix (distance between consecutive columns).

Returns: The leading dimension.

◆ clear()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::clear ( )

Clear the matrix.

Releases all memory and resets the matrix to an empty state.

◆ fill()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::fill ( T_Scalar val )

Fill all elements with a value.

Sets all elements in the matrix to the specified scalar value.

Parameters

[in] val The scalar value to fill with.

◆ copy()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::copy ( ) const

Create a deep copy of the matrix.

Creates a new matrix with its own memory allocation and copies all elements from this matrix to the new matrix.

Returns: A new matrix containing a copy of this matrix's data.

◆ rcopy() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::rcopy ( )

Create a reference copy (shallow copy) of the matrix.

Creates a new matrix object that references the same memory as this matrix. Changes to either matrix will affect both.

Returns: A matrix that shares memory with this matrix.

◆ rcopy() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > cla3p::dns::XxMatrix< T_Scalar >::rcopy ( ) const

Create a guarded reference copy (shallow copy) of the matrix.

Creates a guarded matrix object that references the same memory as this matrix. The guard ensures the reference is read-only.

Returns: A guarded matrix that shares memory with this matrix.

◆ move()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::move ( )

Move the matrix's resources.

Transfers ownership of the memory to a new matrix object, leaving this matrix in an empty state.

Returns: A new matrix containing this matrix's memory.

◆ diag() [1/2]

template<typename T_Scalar>

alias::VirtualStrided_vec< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::diag ( )

Access the diagonal of the matrix.

Returns a mutable strided vector view of the matrix's diagonal. The diagonal elements can be modified through this view.

Returns: A strided vector view of the diagonal elements.

◆ diag() [2/2]

template<typename T_Scalar>

alias::GuardedStrided_vec< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::diag ( ) const

Access the diagonal of the matrix (const).

Returns a read-only guarded strided vector view of the matrix's diagonal. The diagonal elements cannot be modified through this view.

Returns: A guarded strided vector view of the diagonal elements.

◆ info()

template<typename T_Scalar>

std::string cla3p::dns::XxMatrix< T_Scalar >::info ( const std::string & header = "" ) const

Get information about the matrix.

Returns a string containing information about the matrix's dimensions and properties.

Parameters

[in] header Optional header string to prepend to the information.

Returns: A string containing matrix information.

Examples: ex02e_dense_matrix_create_random.cpp.

◆ print()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::print ( std::streamsize prec = 0 ) const

Print the matrix to standard output.

Prints the matrix elements to standard output with specified precision.

Parameters

[in] prec The output precision (default: 0 for default precision).

◆ toStream()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::toStream	(	std::ostream &	os,
		std::streamsize	prec = 0 ) const

Output the matrix to a stream.

Writes the matrix elements to the specified output stream with specified precision.

Parameters

[in,out]	os	The output stream to write to.
[in]	prec	The output precision (default: 0 for default precision).

◆ iscale()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::iscale ( T_Scalar val )

Scale the matrix in-place.

Multiplies all elements of the matrix by a scalar value.

Parameters

[in] val The scalar value to multiply by.

◆ transpose()

template<typename T_Scalar>

alias::VirtualTrans_dns< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::transpose ( ) const

Transpose the matrix.

Returns a transposed view of the matrix.

Returns: A virtual transpose expression.

◆ ctranspose()

template<typename T_Scalar>

alias::VirtualTrans_dns< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::ctranspose ( ) const

Conjugate transpose the matrix.

Returns a conjugate transposed view of the matrix.

Returns: A virtual conjugate transpose expression.

◆ conjugate()

template<typename T_Scalar>

alias::VirtualConj_dns< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::conjugate ( ) const

Compute the complex conjugate.

Returns a virtual expression containing the complex conjugate of each element.

Returns: A virtual expression with conjugated elements.

◆ iconjugate()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::iconjugate ( )

Conjugate the matrix in-place.

Replaces all elements with their complex conjugates.

◆ normOne()

template<typename T_Scalar>

T_RScalar cla3p::dns::XxMatrix< T_Scalar >::normOne ( ) const

Compute the 1-norm.

Computes the maximum absolute column sum.

Returns: The 1-norm of the matrix.

◆ normInf()

template<typename T_Scalar>

T_RScalar cla3p::dns::XxMatrix< T_Scalar >::normInf ( ) const

Compute the infinity norm.

Computes the maximum absolute row sum.

Returns: The infinity norm of the matrix.

◆ normMax()

template<typename T_Scalar>

T_RScalar cla3p::dns::XxMatrix< T_Scalar >::normMax ( ) const

Compute the maximum norm.

Computes the maximum absolute value of all elements.

Returns: The maximum norm of the matrix.

◆ normFro()

template<typename T_Scalar>

T_RScalar cla3p::dns::XxMatrix< T_Scalar >::normFro ( ) const

Compute the Frobenius norm.

Computes the square root of the sum of squared absolute values of all elements.

Returns: The Frobenius norm of the matrix.

◆ general()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::general ( ) const

Convert to general matrix.

Creates a new general matrix by copying all relevant elements from a structured matrix.

Returns: A general matrix containing the full data.

◆ igeneral()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::igeneral ( )

Convert to general matrix in-place.

Converts a structured matrix to general form by filling in all elements.

◆ permuteLeftRight() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::permuteLeftRight	(	const prm::PxMatrix< int_t > &	P,
		const prm::PxMatrix< int_t > &	Q ) const

Permute rows and columns.

Applies left and right permutations to the matrix.

Parameters

[in]	P	The row permutation matrix.
[in]	Q	The column permutation matrix.

Returns: A new matrix containing the permuted elements.

◆ permuteLeftRight() [2/2]

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::permuteLeftRight	(	const prm::PxMatrix< int_t > &	P,
		const prm::PxMatrix< int_t > &	Q,
		XxMatrix< T_Scalar > &	dest ) const

Permute rows and columns into a destination.

Applies left and right permutations to the matrix and stores the result in the destination matrix.

Parameters

[in]	P	The row permutation matrix.
[in]	Q	The column permutation matrix.
[out]	dest	The destination matrix for the permuted elements.

◆ permuteLeft() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::permuteLeft ( const prm::PxMatrix< int_t > & P ) const

Permute rows.

Applies a left (row) permutation to the matrix.

Parameters

[in] P The row permutation matrix.

Returns: A new matrix containing the permuted elements.

◆ permuteLeft() [2/2]

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::permuteLeft	(	const prm::PxMatrix< int_t > &	P,
		XxMatrix< T_Scalar > &	dest ) const

Permute rows into a destination.

Applies a left (row) permutation to the matrix and stores the result in the destination matrix.

Parameters

[in]	P	The row permutation matrix.
[out]	dest	The destination matrix for the permuted elements.

◆ permuteRight() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::permuteRight ( const prm::PxMatrix< int_t > & Q ) const

Permute columns.

Applies a right (column) permutation to the matrix.

Parameters

[in] Q The column permutation matrix.

Returns: A new matrix containing the permuted elements.

◆ permuteRight() [2/2]

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::permuteRight	(	const prm::PxMatrix< int_t > &	Q,
		XxMatrix< T_Scalar > &	dest ) const

Permute columns into a destination.

Applies a right (column) permutation to the matrix and stores the result in the destination matrix.

Parameters

[in]	Q	The column permutation matrix.
[out]	dest	The destination matrix for the permuted elements.

◆ permuteMirror() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::permuteMirror ( const prm::PxMatrix< int_t > & P ) const

Permute rows and columns symmetrically.

Applies the same permutation to both rows and columns (mirror permutation).

Parameters

[in] P The permutation matrix to apply to both rows and columns.

Returns: A new matrix containing the permuted elements.

◆ permuteMirror() [2/2]

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::permuteMirror	(	const prm::PxMatrix< int_t > &	P,
		XxMatrix< T_Scalar > &	dest ) const

Permute rows and columns symmetrically into a destination.

Applies the same permutation to both rows and columns and stores the result in the destination matrix.

Parameters

[in]	P	The permutation matrix to apply to both rows and columns.
[out]	dest	The destination matrix for the permuted elements.

◆ block()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::block	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj ) const

Extract a block as a new matrix.

Creates a new matrix containing a deep copy of a contiguous block of elements.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns: A new matrix containing the block's data.

◆ rblock() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::rblock	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj )

Extract a reference block.

Creates a matrix that references a contiguous block of this matrix's memory.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns: A matrix that shares memory with this matrix.

◆ rblock() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > cla3p::dns::XxMatrix< T_Scalar >::rblock	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj ) const

Extract a guarded reference block.

Creates a guarded matrix that references a contiguous block of this matrix's memory.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns: A guarded matrix that shares memory with this matrix.

◆ setBlock()

template<typename T_Scalar>

void cla3p::dns::XxMatrix< T_Scalar >::setBlock	(	int_t	ibgn,
		int_t	jbgn,
		const XxMatrix< T_Scalar > &	src )

Set a block of elements.

Copies elements from the source matrix to a contiguous block of this matrix.

Parameters

[in]	ibgn	The starting row index where the block will be written.
[in]	jbgn	The starting column index where the block will be written.
[in]	src	The source matrix to copy from.

◆ column()

template<typename T_Scalar>

XxVector< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::column ( int_t j ) const

Extract a column as a new vector.

Creates a new vector containing a deep copy of a column.

Parameters

[in] j The column index.

Returns: A new vector containing the column's data.

◆ rcolumn() [1/2]

template<typename T_Scalar>

XxVector< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::rcolumn ( int_t j )

Extract a column as a reference.

Creates a vector that references a column of this matrix's memory.

Parameters

[in] j The column index.

Returns: A vector that shares memory with this matrix.

◆ rcolumn() [2/2]

template<typename T_Scalar>

Guard< XxVector< T_Scalar > > cla3p::dns::XxMatrix< T_Scalar >::rcolumn ( int_t j ) const

Extract a column as a guarded reference.

Creates a guarded vector that references a column of this matrix's memory.

Parameters

[in] j The column index.

Returns: A guarded vector that shares memory with this matrix.

◆ row()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::row ( int_t i ) const

Extract a row as a new matrix.

Creates a new matrix containing a deep copy of a row.

Parameters

[in] i The row index.

Returns: A new matrix containing the row's data.

◆ rrow() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::rrow ( int_t i )

Extract a row as a reference.

Creates a matrix that references a row of this matrix's memory.

Parameters

[in] i The row index.

Returns: A matrix that shares memory with this matrix.

◆ rrow() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > cla3p::dns::XxMatrix< T_Scalar >::rrow ( int_t i ) const

Extract a row as a guarded reference.

Creates a guarded matrix that references a row of this matrix's memory.

Parameters

[in] i The row index.

Returns: A guarded matrix that shares memory with this matrix.

◆ rrowvec()

template<typename T_Scalar>

VirtualRowvec< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::rrowvec ( int_t i ) const

Extract a row as a virtual row vector.

Creates a virtual row vector expression that references a row of this matrix's memory.

Parameters

[in] i The row index.

Returns: A virtual row vector expression.

◆ random()

template<typename T_Scalar>

XxMatrix< T_Scalar > cla3p::dns::XxMatrix< T_Scalar >::random	(	int_t	nr,
		int_t	nc,
		const Property &	pr = Property::General(),
		T_RScalar	lo = T_RScalar(0),
		T_RScalar	hi = T_RScalar(1) )

static

Create a random matrix.

Creates a matrix with random values uniformly distributed in the specified range.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	pr	The matrix property (default: General).
[in]	lo	The lower bound of the random values (default: 0).
[in]	hi	The upper bound of the random values (default: 1).

Returns: A matrix containing random values.

Examples: ex02e_dense_matrix_create_random.cpp.

◆ view()

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > cla3p::dns::XxMatrix< T_Scalar >::view	(	int_t	nr,
		int_t	nc,
		const T_Scalar *	vals,
		int_t	ldv,
		const Property &	pr = Property::General() )

static

Create a view of existing memory.

Creates a guarded matrix that references existing memory without taking ownership. The memory must remain valid for the lifetime of the returned view.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	vals	Pointer to the memory.
[in]	ldv	The leading dimension.
[in]	pr	The matrix property (default: General).

Returns: A guarded matrix that views the specified memory.

Constructors

Operators

Arguments

Public Member Functions

Creators/Generators

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ XxMatrix() [1/5]

◆ XxMatrix() [2/5]

◆ XxMatrix() [3/5]

◆ XxMatrix() [4/5]

◆ XxMatrix() [5/5]

◆ ~XxMatrix()

Member Function Documentation

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator-()

◆ operator=() [3/3]

◆ ld()

◆ clear()

◆ fill()

◆ copy()

◆ rcopy() [1/2]

◆ rcopy() [2/2]

◆ move()

◆ diag() [1/2]

◆ diag() [2/2]

◆ info()

◆ print()

◆ toStream()

◆ iscale()

◆ transpose()

◆ ctranspose()

◆ conjugate()

◆ iconjugate()

◆ normOne()

◆ normInf()

◆ normMax()

◆ normFro()

◆ general()

◆ igeneral()

◆ permuteLeftRight() [1/2]

◆ permuteLeftRight() [2/2]

◆ permuteLeft() [1/2]

◆ permuteLeft() [2/2]

◆ permuteRight() [1/2]

◆ permuteRight() [2/2]

◆ permuteMirror() [1/2]

◆ permuteMirror() [2/2]

◆ block()

◆ rblock() [1/2]

◆ rblock() [2/2]

◆ setBlock()

◆ column()

◆ rcolumn() [1/2]

◆ rcolumn() [2/2]

◆ row()

◆ rrow() [1/2]

◆ rrow() [2/2]

◆ rrowvec()

◆ random()

◆ view()
