culite::dns::XxMatrix< T_Scalar > Class Template Reference

The device dense matrix class. More...

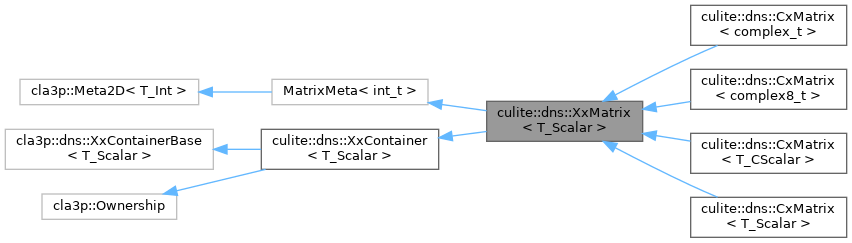

Inheritance diagram for culite::dns::XxMatrix< T_Scalar >:

Constructors
	XxMatrix ()
	Default constructor.
	XxMatrix (int_t nr, int_t nc, const Property &pr=Property::General())
	Dimension constructor.
	XxMatrix (int_t nr, int_t nc, T_Scalar *vals, int_t ldv, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	XxMatrix (const XxMatrix< T_Scalar > &other)
	Copy constructor.
	XxMatrix (XxMatrix< T_Scalar > &&other)
	Move constructor.
	~XxMatrix ()
	Destructor.

Operators
XxMatrix< T_Scalar > &	operator= (const XxMatrix< T_Scalar > &other)
	Copy assignment operator.
XxMatrix< T_Scalar > &	operator= (XxMatrix< T_Scalar > &&other)
	Move assignment operator.
void	operator= (T_Scalar val)
	Fill operator.
alias::VirtualScal_dns< T_Scalar >	operator- () const
	Unary negation operator.

Arguments
int_t	ld () const
	Get the leading dimension.

Public Member Functions
void	clear ()
	Clear the device matrix.
void	fill (T_Scalar val)
	Fill all elements with a value.
XxMatrix< T_Scalar >	copy () const
	Create a deep copy of the device matrix.
XxMatrix< T_Scalar >	rcopy ()
	Create a reference copy (shallow copy) of the device matrix.
Guard< XxMatrix< T_Scalar > >	rcopy () const
	Create a guarded reference copy (shallow copy) of the device matrix.
XxMatrix< T_Scalar >	move ()
	Move the device matrix's resources.
std::string	info (const std::string &header="") const
	Get information about the device matrix.
void	iscale (T_Scalar val)
	Scale the device matrix in-place.
alias::VirtualTrans_dns< T_Scalar >	transpose () const
	Transpose the device matrix.
alias::VirtualTrans_dns< T_Scalar >	ctranspose () const
	Conjugate transpose the device matrix.
alias::VirtualConj_dns< T_Scalar >	conjugate () const
	Compute the complex conjugate.
void	iconjugate ()
	Conjugate the device matrix in-place.
T_RScalar	normOne () const
	Compute the 1-norm.
T_RScalar	normInf () const
	Compute the infinity norm.
T_RScalar	normMax () const
	Compute the maximum norm.
T_RScalar	normFro () const
	Compute the Frobenius norm.
XxMatrix< T_Scalar >	block (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a block as a new device matrix.
XxMatrix< T_Scalar >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj)
	Extract a reference block.
Guard< XxMatrix< T_Scalar > >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a guarded reference block.
void	setBlock (int_t ibgn, int_t jbgn, const XxMatrix< T_Scalar > &src)
	Set a block of elements.
XxVector< T_Scalar >	column (int_t j) const
	Extract a column as a new device vector.
XxVector< T_Scalar >	rcolumn (int_t j)
	Extract a column as a reference.
Guard< XxVector< T_Scalar > >	rcolumn (int_t j) const
	Extract a column as a guarded reference.
XxMatrix< T_Scalar >	row (int_t i) const
	Extract a row as a new device matrix.
XxMatrix< T_Scalar >	rrow (int_t i)
	Extract a row as a reference.
Guard< XxMatrix< T_Scalar > >	rrow (int_t i) const
	Extract a row as a guarded reference.
VirtualRowvec< T_Scalar >	rrowvec (int_t i) const
	Extract a row as a virtual row vector.
void	copyToHost (::cla3p::dns::XxMatrix< T_Cla3pScalar > &dest) const
	Copies the device matrix to a host matrix.
void	copyFromHost (const ::cla3p::dns::XxMatrix< T_Cla3pScalar > &src)
	Copies a host matrix to the device matrix.

Creators/Generators
static Guard< XxMatrix< T_Scalar > >	view (int_t nr, int_t nc, const T_Scalar *vals, int_t ldv, const Property &pr=Property::General())
	Create a view of existing device memory.

Detailed Description

template<typename T_Scalar>
class culite::dns::XxMatrix< T_Scalar >

The device dense matrix class.

Represents a dense matrix stored on the GPU device.

Template Parameters

T_Scalar

The scalar type (e.g., float, double, complex).

Constructor & Destructor Documentation

XxMatrix() [1/5]

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::XxMatrix

(

)

Default constructor.

Creates an empty device matrix with no allocated device memory.

XxMatrix() [2/5]

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::XxMatrix ( int_t nr, int_t nc, const Property & pr = Property::General() )

explicit

Dimension constructor.

Creates a device matrix of the specified dimensions and allocates device memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	pr	The matrix property (default: General).

XxMatrix() [3/5]

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::XxMatrix ( int_t nr, int_t nc, T_Scalar * vals, int_t ldv, bool bind, const Property & pr = Property::General() )

explicit

Auxiliary constructor.

Creates a device matrix using existing device memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	vals	Pointer to existing device memory.
[in]	ldv	The leading dimension.
[in]	bind	If true, the matrix takes ownership of the memory.
[in]	pr	The matrix property (default: General).

XxMatrix() [4/5]

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::XxMatrix

(

const XxMatrix< T_Scalar > &

other

)

Copy constructor.

Creates a new device matrix by copying another device matrix.

Parameters

[in]

other

The device matrix to copy.

XxMatrix() [5/5]

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::XxMatrix

(

XxMatrix< T_Scalar > &&

other

)

Move constructor.

Creates a new device matrix by moving resources from another device matrix.

Parameters

[in]

other

The device matrix to move from.

~XxMatrix()

template<typename T_Scalar>

culite::dns::XxMatrix< T_Scalar >::~XxMatrix

(

)

Destructor.

Destroys the device matrix and releases allocated device memory.

Member Function Documentation

operator=() [1/3]

template<typename T_Scalar>

XxMatrix< T_Scalar > & culite::dns::XxMatrix< T_Scalar >::operator=

(

const XxMatrix< T_Scalar > &

other

)

Copy assignment operator.

Copies the contents of another device matrix to this device matrix.

Parameters

[in]

other

The device matrix to copy.

Returns

Reference to this device matrix.

operator=() [2/3]

template<typename T_Scalar>

XxMatrix< T_Scalar > & culite::dns::XxMatrix< T_Scalar >::operator=

(

XxMatrix< T_Scalar > &&

other

)

Move assignment operator.

Moves resources from another device matrix to this device matrix.

Parameters

[in]

other

The device matrix to move from.

Returns

Reference to this device matrix.

operator=() [3/3]

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::operator=

(

T_Scalar

val

)

Fill operator.

Fills all elements with the specified value.

Parameters

[in]

val

The scalar value to fill with.

operator-()

template<typename T_Scalar>

alias::VirtualScal_dns< T_Scalar > culite::dns::XxMatrix< T_Scalar >::operator-

(

)

const

Unary negation operator.

Returns a negated copy of the device matrix.

Returns

A device matrix containing the negated elements.

ld()

template<typename T_Scalar>

int_t culite::dns::XxMatrix< T_Scalar >::ld

(

)

const

Get the leading dimension.

Returns the leading dimension of the device matrix (distance between consecutive columns).

Returns

The leading dimension.

clear()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::clear

(

)

Clear the device matrix.

Releases all device memory and resets the matrix to an empty state.

fill()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::fill

(

T_Scalar

val

)

Fill all elements with a value.

Sets all elements in the matrix to the specified scalar value.

Parameters

[in]

val

The scalar value to fill with.

copy()

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::copy

(

)

const

Create a deep copy of the device matrix.

Creates a new device matrix with its own device memory allocation and copies all elements from this matrix to the new matrix.

Returns

A new device matrix containing a copy of this matrix's data.

rcopy() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::rcopy

(

)

Create a reference copy (shallow copy) of the device matrix.

Creates a new device matrix object that references the same device memory as this matrix. Changes to either matrix will affect both.

Returns

A device matrix that shares device memory with this matrix.

rcopy() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > culite::dns::XxMatrix< T_Scalar >::rcopy

(

)

const

Create a guarded reference copy (shallow copy) of the device matrix.

Creates a guarded device matrix object that references the same device memory as this matrix. The guard ensures the reference is read-only.

Returns

A guarded device matrix that shares device memory with this matrix.

move()

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::move

(

)

Move the device matrix's resources.

Transfers ownership of the device memory to a new matrix object, leaving this matrix in an empty state.

Returns

A new device matrix containing this matrix's device memory.

info()

template<typename T_Scalar>

std::string culite::dns::XxMatrix< T_Scalar >::info

(

const std::string &

header = ""

)

const

Get information about the device matrix.

Returns a string containing information about the matrix's dimensions and properties.

Parameters

[in]

header

Optional header string to prepend to the information.

Returns

A string containing matrix information.

iscale()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::iscale

(

T_Scalar

val

)

Scale the device matrix in-place.

Multiplies all elements of the device matrix by a scalar value.

Parameters

[in]

val

The scalar value to multiply by.

transpose()

template<typename T_Scalar>

alias::VirtualTrans_dns< T_Scalar > culite::dns::XxMatrix< T_Scalar >::transpose

(

)

const

Transpose the device matrix.

Returns a transposed copy of the device matrix.

Returns

A device matrix containing the transposed elements.

ctranspose()

template<typename T_Scalar>

alias::VirtualTrans_dns< T_Scalar > culite::dns::XxMatrix< T_Scalar >::ctranspose

(

)

const

Conjugate transpose the device matrix.

Returns a conjugate transposed copy of the device matrix.

Returns

A device matrix containing the conjugate transposed elements.

conjugate()

template<typename T_Scalar>

alias::VirtualConj_dns< T_Scalar > culite::dns::XxMatrix< T_Scalar >::conjugate

(

)

const

Compute the complex conjugate.

Returns a device matrix containing the complex conjugate of each element.

Returns

A device matrix with conjugated elements.

iconjugate()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::iconjugate

(

)

Conjugate the device matrix in-place.

Replaces all elements with their complex conjugates.

normOne()

template<typename T_Scalar>

T_RScalar culite::dns::XxMatrix< T_Scalar >::normOne

(

)

const

Compute the 1-norm.

Computes the maximum absolute column sum.

Returns

The 1-norm of the device matrix.

normInf()

template<typename T_Scalar>

T_RScalar culite::dns::XxMatrix< T_Scalar >::normInf

(

)

const

Compute the infinity norm.

Computes the maximum absolute row sum.

Returns

The infinity norm of the device matrix.

normMax()

template<typename T_Scalar>

T_RScalar culite::dns::XxMatrix< T_Scalar >::normMax

(

)

const

Compute the maximum norm.

Computes the maximum absolute value of all elements.

Returns

The maximum norm of the device matrix.

normFro()

template<typename T_Scalar>

T_RScalar culite::dns::XxMatrix< T_Scalar >::normFro

(

)

const

Compute the Frobenius norm.

Computes the square root of the sum of squared absolute values of all elements.

Returns

The Frobenius norm of the device matrix.

block()

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::block	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj ) const

Extract a block as a new device matrix.

Creates a new device matrix containing a deep copy of a contiguous block of elements.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns

A new device matrix containing the block's data.

rblock() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::rblock	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj )

Extract a reference block.

Creates a device matrix that references a contiguous block of this matrix's device memory.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns

A device matrix that shares device memory with this matrix.

rblock() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > culite::dns::XxMatrix< T_Scalar >::rblock	(	int_t	ibgn,
		int_t	jbgn,
		int_t	ni,
		int_t	nj ) const

Extract a guarded reference block.

Creates a guarded device matrix that references a contiguous block of this matrix's device memory.

Parameters

[in]	ibgn	The starting row index of the block.
[in]	jbgn	The starting column index of the block.
[in]	ni	The number of rows in the block.
[in]	nj	The number of columns in the block.

Returns

A guarded device matrix that shares device memory with this matrix.

setBlock()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::setBlock	(	int_t	ibgn,
		int_t	jbgn,
		const XxMatrix< T_Scalar > &	src )

Set a block of elements.

Copies elements from the source device matrix to a contiguous block of this matrix.

Parameters

[in]	ibgn	The starting row index where the block will be written.
[in]	jbgn	The starting column index where the block will be written.
[in]	src	The source device matrix to copy from.

column()

template<typename T_Scalar>

XxVector< T_Scalar > culite::dns::XxMatrix< T_Scalar >::column

(

int_t

j

)

const

Extract a column as a new device vector.

Creates a new device vector containing a deep copy of a column.

Parameters

[in]

j

The column index.

Returns

A new device vector containing the column's data.

rcolumn() [1/2]

template<typename T_Scalar>

XxVector< T_Scalar > culite::dns::XxMatrix< T_Scalar >::rcolumn

(

int_t

j

)

Extract a column as a reference.

Creates a device vector that references a column of this matrix's device memory.

Parameters

[in]

j

The column index.

Returns

A device vector that shares device memory with this matrix.

rcolumn() [2/2]

template<typename T_Scalar>

Guard< XxVector< T_Scalar > > culite::dns::XxMatrix< T_Scalar >::rcolumn

(

int_t

j

)

const

Extract a column as a guarded reference.

Creates a guarded device vector that references a column of this matrix's device memory.

Parameters

[in]

j

The column index.

Returns

A guarded device vector that shares device memory with this matrix.

row()

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::row

(

int_t

i

)

const

Extract a row as a new device matrix.

Creates a new device matrix containing a deep copy of a row.

Parameters

[in]

i

The row index.

Returns

A new device matrix containing the row's data.

rrow() [1/2]

template<typename T_Scalar>

XxMatrix< T_Scalar > culite::dns::XxMatrix< T_Scalar >::rrow

(

int_t

i

)

Extract a row as a reference.

Creates a device matrix that references a row of this matrix's device memory.

Parameters

[in]

i

The row index.

Returns

A device matrix that shares device memory with this matrix.

rrow() [2/2]

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > culite::dns::XxMatrix< T_Scalar >::rrow

(

int_t

i

)

const

Extract a row as a guarded reference.

Creates a guarded device matrix that references a row of this matrix's device memory.

Parameters

[in]

i

The row index.

Returns

A guarded device matrix that shares device memory with this matrix.

rrowvec()

template<typename T_Scalar>

VirtualRowvec< T_Scalar > culite::dns::XxMatrix< T_Scalar >::rrowvec

(

int_t

i

)

const

Extract a row as a virtual row vector.

Creates a virtual row vector expression that references a row of this matrix's device memory.

Parameters

[in]

i

The row index.

Returns

A virtual row vector expression.

copyToHost()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::copyToHost

(

::cla3p::dns::XxMatrix< T_Cla3pScalar > &

dest

)

const

Copies the device matrix to a host matrix.

Performs a device-to-host copy operation. If dest is empty, it is resized to match the dimensions and properties of the device matrix. Otherwise, dest must be compatible with the device matrix.

Parameters

[out]

dest

The destination host matrix.

copyFromHost()

template<typename T_Scalar>

void culite::dns::XxMatrix< T_Scalar >::copyFromHost

(

const ::cla3p::dns::XxMatrix< T_Cla3pScalar > &

src

)

Copies a host matrix to the device matrix.

Performs a host-to-device copy operation. If the device matrix is empty, it is resized to match the dimensions and properties of src. Otherwise, the device matrix must be compatible with src.

Parameters

[in]

src

The source host matrix.

view()

template<typename T_Scalar>

Guard< XxMatrix< T_Scalar > > culite::dns::XxMatrix< T_Scalar >::view ( int_t nr, int_t nc, const T_Scalar * vals, int_t ldv, const Property & pr = Property::General() )

static

Create a view of existing device memory.

Creates a guarded device matrix that references existing device memory without taking ownership. The memory must remain valid for the lifetime of the returned view.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	vals	Pointer to the device memory.
[in]	ldv	The leading dimension.
[in]	pr	The matrix property (default: General).

Returns

A guarded device matrix that views the specified device memory.
