The sparse complex matrix class (compressed sparse column format). More...

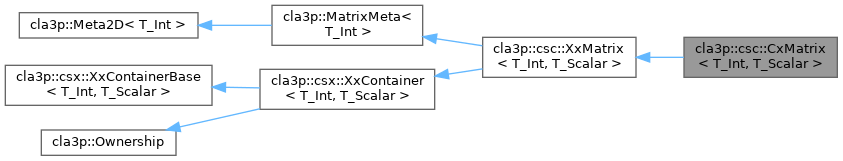

Inheritance diagram for cla3p::csc::CxMatrix< T_Int, T_Scalar >:

[legend]

Constructors
	CxMatrix ()
	Default constructor.
	CxMatrix (T_Int nr, T_Int nc, T_Int nz, const Property &pr=Property::General())
	Dimension constructor.
	CxMatrix (T_Int nr, T_Int nc, T_Int cptr, T_Int ridx, T_Scalar *vals, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	CxMatrix (const CxMatrix< T_Int, T_Scalar > &other)=default
	Copy constructor.
	CxMatrix (CxMatrix< T_Int, T_Scalar > &&other)=default
	Move constructor.
	~CxMatrix ()
	Destructor.

Operators
CxMatrix< T_Int, T_Scalar > &	operator= (const CxMatrix< T_Int, T_Scalar > &other)=default
	Copy assignment operator.
CxMatrix< T_Int, T_Scalar > &	operator= (CxMatrix< T_Int, T_Scalar > &&other)=default
	Move assignment operator.

Public Member Functions
alias::VirtualStrided_csc< T_Int, T_RScalar >	real ()
	Accesses the real part of the complex sparse matrix.
alias::VirtualStrided_csc< T_Int, T_RScalar >	imag ()
	Accesses the imaginary part of the complex sparse matrix.
alias::GuardedStrided_csc< T_Int, T_RScalar >	real () const
	Accesses the real part of the complex sparse matrix (const).
alias::GuardedStrided_csc< T_Int, T_RScalar >	imag () const
	Accesses the imaginary part of the complex sparse matrix (const).

Additional Inherited Members
	XxMatrix ()
	Default constructor.
	XxMatrix (T_Int nr, T_Int nc, T_Int nz, const Property &pr=Property::General())
	Dimension constructor.
	XxMatrix (T_Int nr, T_Int nc, T_Int cptr, T_Int ridx, T_Scalar *vals, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	XxMatrix (const XxMatrix< T_Int, T_Scalar > &other)
	Copy constructor.
	XxMatrix (XxMatrix< T_Int, T_Scalar > &&other)
	Move constructor.
	~XxMatrix ()
	Destructor.
XxMatrix< T_Int, T_Scalar > &	operator= (const XxMatrix< T_Int, T_Scalar > &other)
	Copy assignment operator.
XxMatrix< T_Int, T_Scalar > &	operator= (XxMatrix< T_Int, T_Scalar > &&other)
	Move assignment operator.
alias::VirtualScal_csc< T_Int, T_Scalar >	operator- () const
	Unary negation operator.
T_Int *	colptr ()
	Access the column pointer array.
const T_Int *	colptr () const
	Access the column pointer array.
T_Int *	rowidx ()
	Access the row index array.
const T_Int *	rowidx () const
	Access the row index array.
T_Int	nnz () const
	Get the number of non-zero elements.
void	clear ()
	Clear the sparse matrix.
std::string	info (const std::string &header="") const
	Get information about the sparse matrix.
XxMatrix< T_Int, T_Scalar >	copy () const
	Create a deep copy of the sparse matrix.
XxMatrix< T_Int, T_Scalar >	rcopy ()
	Create a reference copy (shallow copy) of the sparse matrix.
Guard< XxMatrix< T_Int, T_Scalar > >	rcopy () const
	Create a guarded reference copy (shallow copy) of the sparse matrix.
XxMatrix< T_Int, T_Scalar >	move ()
	Move the sparse matrix's resources.
void	toStream (std::ostream &os, std::streamsize prec=0) const
	Output the sparse matrix to a stream.
void	iscale (T_Scalar val)
	Scale the sparse matrix in-place.
alias::VirtualTrans_csc< T_Int, T_Scalar >	transpose () const
	Transpose the sparse matrix.
alias::VirtualTrans_csc< T_Int, T_Scalar >	ctranspose () const
	Conjugate transpose the sparse matrix.
alias::VirtualConj_csc< T_Int, T_Scalar >	conjugate () const
	Compute the complex conjugate.
void	iconjugate ()
	Conjugate the sparse matrix in-place.
T_RScalar	normOne () const
	Compute the 1-norm.
T_RScalar	normInf () const
	Compute the infinity norm.
T_RScalar	normMax () const
	Compute the maximum norm.
T_RScalar	normFro () const
	Compute the Frobenius norm.
XxMatrix< T_Int, T_Scalar >	general () const
	Convert to general sparse matrix.
dns::XxMatrix< T_Scalar >	toDns () const
	Convert to dense matrix format.
XxMatrix< T_Int, T_Scalar >	permuteLeftRight (const prm::PxMatrix< T_Int > &P, const prm::PxMatrix< T_Int > &Q) const
	Permute rows and columns.
XxMatrix< T_Int, T_Scalar >	permuteLeft (const prm::PxMatrix< T_Int > &P) const
	Permute rows.
XxMatrix< T_Int, T_Scalar >	permuteRight (const prm::PxMatrix< T_Int > &Q) const
	Permute columns.
XxMatrix< T_Int, T_Scalar >	permuteMirror (const prm::PxMatrix< T_Int > &P) const
	Permute rows and columns symmetrically.
XxMatrix< T_Int, T_Scalar >	block (T_Int ibgn, T_Int jbgn, T_Int ni, T_Int nj) const
	Extract a block as a new sparse matrix.
Public Member Functions inherited from cla3p::MatrixMeta< T_Int >
const Property &	prop () const
	Matrix property accessor.
Public Member Functions inherited from cla3p::Meta2D< T_Int >
virtual T_Int	nrows () const
	Number of rows.
virtual T_Int	ncols () const
	Number of columns.
bool	empty () const
	Tests whether the object has zero dimensions.
	operator bool () const
	Boolean conversion operator.
Public Member Functions inherited from cla3p::csx::XxContainerBase< T_Int, T_Scalar >
T_Scalar *	values ()
	Access the data buffer.
const T_Scalar *	values () const
	Access the data buffer.
Public Member Functions inherited from cla3p::Ownership
	Ownership ()
	Default constructor.
	Ownership (bool owner)
	Ownership constructor.
	~Ownership ()
	Destructor.
bool	owner () const
	Tests memory ownership.
void	unbind ()
	Relinquishes memory ownership.
static XxMatrix< T_Int, T_Scalar >	random (T_Int nr, T_Int nc, T_Int nz, const Property &pr=Property::General(), T_RScalar lo=T_RScalar(0), T_RScalar hi=T_RScalar(1))
	Create a random sparse matrix.
static Guard< XxMatrix< T_Int, T_Scalar > >	view (T_Int nr, T_Int nc, const T_Int cptr, const T_Int ridx, const T_Scalar *vals, const Property &pr=Property::General())
	Create a view of existing CSC arrays.

Detailed Description

template<typename T_Int, typename T_Scalar>
class cla3p::csc::CxMatrix< T_Int, T_Scalar >

The sparse complex matrix class (compressed sparse column format).

Represents a sparse complex-valued matrix in compressed sparse column (CSC) format.

Template Parameters

T_Int	The integer type for indices.
T_Scalar	The complex scalar type (e.g., std::complex<float>, std::complex<double>).

Constructor & Destructor Documentation

◆ CxMatrix() [1/5]

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::CxMatrix ( )

Default constructor.

Creates an empty complex sparse matrix with no allocated memory.

◆ CxMatrix() [2/5]

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::CxMatrix	(	T_Int	nr,
		T_Int	nc,
		T_Int	nz,
		const Property &	pr = Property::General() )

explicit

Dimension constructor.

Creates a complex sparse matrix of the specified dimensions in CSC format and allocates memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	nz	The number of non-zero elements.
[in]	pr	The matrix property (default: General).

◆ CxMatrix() [3/5]

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::CxMatrix	(	T_Int	nr,
		T_Int	nc,
		T_Int *	cptr,
		T_Int *	ridx,
		T_Scalar *	vals,
		bool	bind,
		const Property &	pr = Property::General() )

explicit

Auxiliary constructor.

Creates a complex sparse matrix using existing CSC format arrays.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	cptr	Pointer to existing column pointer array.
[in]	ridx	Pointer to existing row index array.
[in]	vals	Pointer to existing values array.
[in]	bind	If true, the matrix takes ownership of the memory.
[in]	pr	The matrix property (default: General).

◆ CxMatrix() [4/5]

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::CxMatrix ( const CxMatrix< T_Int, T_Scalar > & other )

default

Copy constructor.

Creates a new complex sparse matrix by copying another complex sparse matrix.

Parameters

[in] other The complex sparse matrix to copy.

◆ CxMatrix() [5/5]

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::CxMatrix ( CxMatrix< T_Int, T_Scalar > && other )

default

Move constructor.

Creates a new complex sparse matrix by moving resources from another complex sparse matrix.

Parameters

[in] other The complex sparse matrix to move from.

◆ ~CxMatrix()

template<typename T_Int, typename T_Scalar>

cla3p::csc::CxMatrix< T_Int, T_Scalar >::~CxMatrix ( )

Destructor.

Destroys the complex sparse matrix and releases allocated memory.

Member Function Documentation

◆ operator=() [1/2]

template<typename T_Int, typename T_Scalar>

CxMatrix< T_Int, T_Scalar > & cla3p::csc::CxMatrix< T_Int, T_Scalar >::operator= ( const CxMatrix< T_Int, T_Scalar > & other )

default

Copy assignment operator.

Copies the contents of another complex sparse matrix to this complex sparse matrix.

Parameters

[in] other The complex sparse matrix to copy.

Returns: Reference to this complex sparse matrix.

◆ operator=() [2/2]

template<typename T_Int, typename T_Scalar>

CxMatrix< T_Int, T_Scalar > & cla3p::csc::CxMatrix< T_Int, T_Scalar >::operator= ( CxMatrix< T_Int, T_Scalar > && other )

default

Move assignment operator.

Moves resources from another complex sparse matrix to this complex sparse matrix.

Parameters

[in] other The complex sparse matrix to move from.

Returns: Reference to this complex sparse matrix.

◆ real() [1/2]

template<typename T_Int, typename T_Scalar>

alias::VirtualStrided_csc< T_Int, T_RScalar > cla3p::csc::CxMatrix< T_Int, T_Scalar >::real ( )

Accesses the real part of the complex sparse matrix.

Returns a strided view of the real components that can be used for both reading and writing.

Returns: A virtual strided view of the real part.

◆ imag() [1/2]

template<typename T_Int, typename T_Scalar>

alias::VirtualStrided_csc< T_Int, T_RScalar > cla3p::csc::CxMatrix< T_Int, T_Scalar >::imag ( )

Accesses the imaginary part of the complex sparse matrix.

Returns a strided view of the imaginary components that can be used for both reading and writing.

Returns: A virtual strided view of the imaginary part.

◆ real() [2/2]

template<typename T_Int, typename T_Scalar>

alias::GuardedStrided_csc< T_Int, T_RScalar > cla3p::csc::CxMatrix< T_Int, T_Scalar >::real ( ) const

Accesses the real part of the complex sparse matrix (const).

Returns a read-only strided view of the real components.

Returns: A guarded strided view of the real part.

◆ imag() [2/2]

template<typename T_Int, typename T_Scalar>

alias::GuardedStrided_csc< T_Int, T_RScalar > cla3p::csc::CxMatrix< T_Int, T_Scalar >::imag ( ) const

Accesses the imaginary part of the complex sparse matrix (const).

Returns a read-only strided view of the imaginary components.

Returns: A guarded strided view of the imaginary part.
