The dense complex matrix class. More...

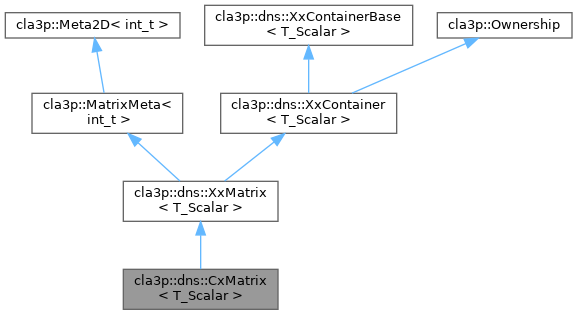

Inheritance diagram for cla3p::dns::CxMatrix< T_Scalar >:

[legend]

Constructors
	CxMatrix ()
	Default constructor.
	CxMatrix (int_t nr, int_t nc, const Property &pr=Property::General())
	Dimension constructor.
	CxMatrix (int_t nr, int_t nc, T_Scalar *vals, int_t ldv, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	CxMatrix (const CxMatrix< T_Scalar > &other)=default
	Copy constructor.
	CxMatrix (CxMatrix< T_Scalar > &&other)=default
	Move constructor.
	~CxMatrix ()
	Destructor.

Operators
CxMatrix< T_Scalar > &	operator= (const CxMatrix< T_Scalar > &other)=default
	Copy assignment operator.
CxMatrix< T_Scalar > &	operator= (CxMatrix< T_Scalar > &&other)=default
	Move assignment operator.
void	operator= (T_Scalar val)
	Fill operator.

Public Member Functions
alias::VirtualStrided_dns< T_RScalar >	real ()
	Accesses the real part of the complex matrix.
alias::VirtualStrided_dns< T_RScalar >	imag ()
	Accesses the imaginary part of the complex matrix.
alias::GuardedStrided_dns< T_RScalar >	real () const
	Accesses the real part of the complex matrix (const).
alias::GuardedStrided_dns< T_RScalar >	imag () const
	Accesses the imaginary part of the complex matrix (const).

Additional Inherited Members
	XxMatrix ()
	Default constructor.
	XxMatrix (int_t nr, int_t nc, const Property &pr=Property::General())
	Dimension constructor.
	XxMatrix (int_t nr, int_t nc, T_Scalar *vals, int_t ldv, bool bind, const Property &pr=Property::General())
	Auxiliary constructor.
	XxMatrix (const XxMatrix< T_Scalar > &other)
	Copy constructor.
	XxMatrix (XxMatrix< T_Scalar > &&other)
	Move constructor.
	~XxMatrix ()
	Destructor.
XxMatrix< T_Scalar > &	operator= (const XxMatrix< T_Scalar > &other)
	Copy assignment operator.
XxMatrix< T_Scalar > &	operator= (XxMatrix< T_Scalar > &&other)
	Move assignment operator.
T_Scalar &	operator() (int_t i, int_t j)
	Element access operator.
const T_Scalar &	operator() (int_t i, int_t j) const
	Element access operator.
alias::VirtualScal_dns< T_Scalar >	operator- () const
	Unary negation operator.
void	operator= (T_Scalar val)
	Fill operator.
int_t	ld () const
	Get the leading dimension.
void	clear ()
	Clear the matrix.
void	fill (T_Scalar val)
	Fill all elements with a value.
XxMatrix< T_Scalar >	copy () const
	Create a deep copy of the matrix.
XxMatrix< T_Scalar >	rcopy ()
	Create a reference copy (shallow copy) of the matrix.
Guard< XxMatrix< T_Scalar > >	rcopy () const
	Create a guarded reference copy (shallow copy) of the matrix.
XxMatrix< T_Scalar >	move ()
	Move the matrix's resources.
alias::VirtualStrided_vec< T_Scalar >	diag ()
	Access the diagonal of the matrix.
alias::GuardedStrided_vec< T_Scalar >	diag () const
	Access the diagonal of the matrix (const).
std::string	info (const std::string &header="") const
	Get information about the matrix.
void	print (std::streamsize prec=0) const
	Print the matrix to standard output.
void	toStream (std::ostream &os, std::streamsize prec=0) const
	Output the matrix to a stream.
void	iscale (T_Scalar val)
	Scale the matrix in-place.
alias::VirtualTrans_dns< T_Scalar >	transpose () const
	Transpose the matrix.
alias::VirtualTrans_dns< T_Scalar >	ctranspose () const
	Conjugate transpose the matrix.
alias::VirtualConj_dns< T_Scalar >	conjugate () const
	Compute the complex conjugate.
void	iconjugate ()
	Conjugate the matrix in-place.
T_RScalar	normOne () const
	Compute the 1-norm.
T_RScalar	normInf () const
	Compute the infinity norm.
T_RScalar	normMax () const
	Compute the maximum norm.
T_RScalar	normFro () const
	Compute the Frobenius norm.
XxMatrix< T_Scalar >	general () const
	Convert to general matrix.
void	igeneral ()
	Convert to general matrix in-place.
XxMatrix< T_Scalar >	permuteLeftRight (const prm::PxMatrix< int_t > &P, const prm::PxMatrix< int_t > &Q) const
	Permute rows and columns.
void	permuteLeftRight (const prm::PxMatrix< int_t > &P, const prm::PxMatrix< int_t > &Q, XxMatrix< T_Scalar > &dest) const
	Permute rows and columns into a destination.
XxMatrix< T_Scalar >	permuteLeft (const prm::PxMatrix< int_t > &P) const
	Permute rows.
void	permuteLeft (const prm::PxMatrix< int_t > &P, XxMatrix< T_Scalar > &dest) const
	Permute rows into a destination.
XxMatrix< T_Scalar >	permuteRight (const prm::PxMatrix< int_t > &Q) const
	Permute columns.
void	permuteRight (const prm::PxMatrix< int_t > &Q, XxMatrix< T_Scalar > &dest) const
	Permute columns into a destination.
XxMatrix< T_Scalar >	permuteMirror (const prm::PxMatrix< int_t > &P) const
	Permute rows and columns symmetrically.
void	permuteMirror (const prm::PxMatrix< int_t > &P, XxMatrix< T_Scalar > &dest) const
	Permute rows and columns symmetrically into a destination.
XxMatrix< T_Scalar >	block (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a block as a new matrix.
XxMatrix< T_Scalar >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj)
	Extract a reference block.
Guard< XxMatrix< T_Scalar > >	rblock (int_t ibgn, int_t jbgn, int_t ni, int_t nj) const
	Extract a guarded reference block.
void	setBlock (int_t ibgn, int_t jbgn, const XxMatrix< T_Scalar > &src)
	Set a block of elements.
XxVector< T_Scalar >	column (int_t j) const
	Extract a column as a new vector.
XxVector< T_Scalar >	rcolumn (int_t j)
	Extract a column as a reference.
Guard< XxVector< T_Scalar > >	rcolumn (int_t j) const
	Extract a column as a guarded reference.
XxMatrix< T_Scalar >	row (int_t i) const
	Extract a row as a new matrix.
XxMatrix< T_Scalar >	rrow (int_t i)
	Extract a row as a reference.
Guard< XxMatrix< T_Scalar > >	rrow (int_t i) const
	Extract a row as a guarded reference.
VirtualRowvec< T_Scalar >	rrowvec (int_t i) const
	Extract a row as a virtual row vector.
Public Member Functions inherited from cla3p::MatrixMeta< int_t >
const Property &	prop () const
	Matrix property accessor.
Public Member Functions inherited from cla3p::Meta2D< int_t >
virtual int_t	nrows () const
	Number of rows.
virtual int_t	ncols () const
	Number of columns.
bool	empty () const
	Tests whether the object has zero dimensions.
	operator bool () const
	Boolean conversion operator.
Public Member Functions inherited from cla3p::dns::XxContainerBase< T_Scalar >
T_Scalar *	values ()
	Access the data buffer.
const T_Scalar *	values () const
	Access the data buffer.
Public Member Functions inherited from cla3p::Ownership
	Ownership ()
	Default constructor.
	Ownership (bool owner)
	Ownership constructor.
	~Ownership ()
	Destructor.
bool	owner () const
	Tests memory ownership.
void	unbind ()
	Relinquishes memory ownership.
static XxMatrix< T_Scalar >	random (int_t nr, int_t nc, const Property &pr=Property::General(), T_RScalar lo=T_RScalar(0), T_RScalar hi=T_RScalar(1))
	Create a random matrix.
static Guard< XxMatrix< T_Scalar > >	view (int_t nr, int_t nc, const T_Scalar *vals, int_t ldv, const Property &pr=Property::General())
	Create a view of existing memory.

Detailed Description

template<typename T_Scalar>
class cla3p::dns::CxMatrix< T_Scalar >

The dense complex matrix class.

Represents a dense complex-valued matrix stored in column-major format.

Template Parameters

T_Scalar The complex scalar type (e.g., std::complex<float>, std::complex<double>).

Constructor & Destructor Documentation

◆ CxMatrix() [1/5]

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::CxMatrix ( )

Default constructor.

Creates an empty complex matrix with no allocated memory.

◆ CxMatrix() [2/5]

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::CxMatrix	(	int_t	nr,
		int_t	nc,
		const Property &	pr = Property::General() )

explicit

Dimension constructor.

Creates a complex matrix of the specified dimensions and allocates memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	pr	The matrix property (default: General).

◆ CxMatrix() [3/5]

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::CxMatrix	(	int_t	nr,
		int_t	nc,
		T_Scalar *	vals,
		int_t	ldv,
		bool	bind,
		const Property &	pr = Property::General() )

explicit

Auxiliary constructor.

Creates a complex matrix using existing memory.

Parameters

[in]	nr	The number of rows.
[in]	nc	The number of columns.
[in]	vals	Pointer to existing memory.
[in]	ldv	The leading dimension.
[in]	bind	If true, the matrix takes ownership of the memory.
[in]	pr	The matrix property (default: General).

◆ CxMatrix() [4/5]

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::CxMatrix ( const CxMatrix< T_Scalar > & other )

default

Copy constructor.

Creates a new complex matrix by copying another complex matrix.

Parameters

[in] other The complex matrix to copy.

◆ CxMatrix() [5/5]

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::CxMatrix ( CxMatrix< T_Scalar > && other )

default

Move constructor.

Creates a new complex matrix by moving resources from another complex matrix.

Parameters

[in] other The complex matrix to move from.

◆ ~CxMatrix()

template<typename T_Scalar>

cla3p::dns::CxMatrix< T_Scalar >::~CxMatrix ( )

Destructor.

Destroys the complex matrix and releases allocated memory.

Member Function Documentation

◆ operator=() [1/3]

template<typename T_Scalar>

CxMatrix< T_Scalar > & cla3p::dns::CxMatrix< T_Scalar >::operator= ( const CxMatrix< T_Scalar > & other )

default

Copy assignment operator.

Copies the contents of another complex matrix to this complex matrix.

Parameters

[in] other The complex matrix to copy.

Returns: Reference to this complex matrix.

◆ operator=() [2/3]

template<typename T_Scalar>

CxMatrix< T_Scalar > & cla3p::dns::CxMatrix< T_Scalar >::operator= ( CxMatrix< T_Scalar > && other )

default

Move assignment operator.

Moves resources from another complex matrix to this complex matrix.

Parameters

[in] other The complex matrix to move from.

Returns: Reference to this complex matrix.

◆ operator=() [3/3]

template<typename T_Scalar>

void cla3p::dns::CxMatrix< T_Scalar >::operator= ( T_Scalar val )

Fill operator.

Fills all elements with the specified complex value.

Parameters

[in] val The complex scalar value to fill with.

◆ real() [1/2]

template<typename T_Scalar>

alias::VirtualStrided_dns< T_RScalar > cla3p::dns::CxMatrix< T_Scalar >::real ( )

Accesses the real part of the complex matrix.

Returns a strided view of the real components that can be used for both reading and writing.

Returns: A virtual strided view of the real part.

◆ imag() [1/2]

template<typename T_Scalar>

alias::VirtualStrided_dns< T_RScalar > cla3p::dns::CxMatrix< T_Scalar >::imag ( )

Accesses the imaginary part of the complex matrix.

Returns a strided view of the imaginary components that can be used for both reading and writing.

Returns: A virtual strided view of the imaginary part.

◆ real() [2/2]

template<typename T_Scalar>

alias::GuardedStrided_dns< T_RScalar > cla3p::dns::CxMatrix< T_Scalar >::real ( ) const

Accesses the real part of the complex matrix (const).

Returns a read-only strided view of the real components.

Returns: A guarded strided view of the real part.

◆ imag() [2/2]

template<typename T_Scalar>

alias::GuardedStrided_dns< T_RScalar > cla3p::dns::CxMatrix< T_Scalar >::imag ( ) const

Accesses the imaginary part of the complex matrix (const).

Returns a read-only strided view of the imaginary components.

Returns: A guarded strided view of the imaginary part.

Constructors

Operators

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CxMatrix() [1/5]

◆ CxMatrix() [2/5]

◆ CxMatrix() [3/5]

◆ CxMatrix() [4/5]

◆ CxMatrix() [5/5]

◆ ~CxMatrix()

Member Function Documentation

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ real() [1/2]

◆ imag() [1/2]

◆ real() [2/2]

◆ imag() [2/2]
